High Speed Spiral Doors
- High speed – fully variable speeds between 0.5 and 2.0 meters per second
- Longevity – non-contact spiral door system – means no wear/ scratching etc on shutter
- High Strength – secure and visually attractive
- Acoustic properties – 42mm thick, double-skinned aluminium panels with PE infill.
- Quiet – non-contact spiral door system – quiet operation
- Thermal insulation – Maximise energy savings EN 13241 Value UD = 1.4 W/ m2K
- High wind retention – wind load rating of 130 km/h
- Safety – photo-cells across doorway (IP67-anti-breakage rated) & safety edge to reverse door
- Vision – windows options available
Feature Product Images
Product Specs

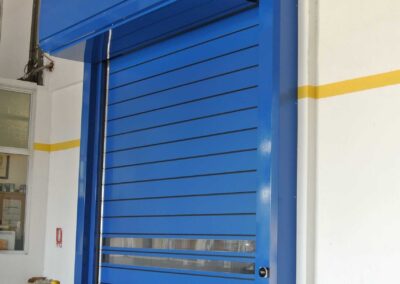

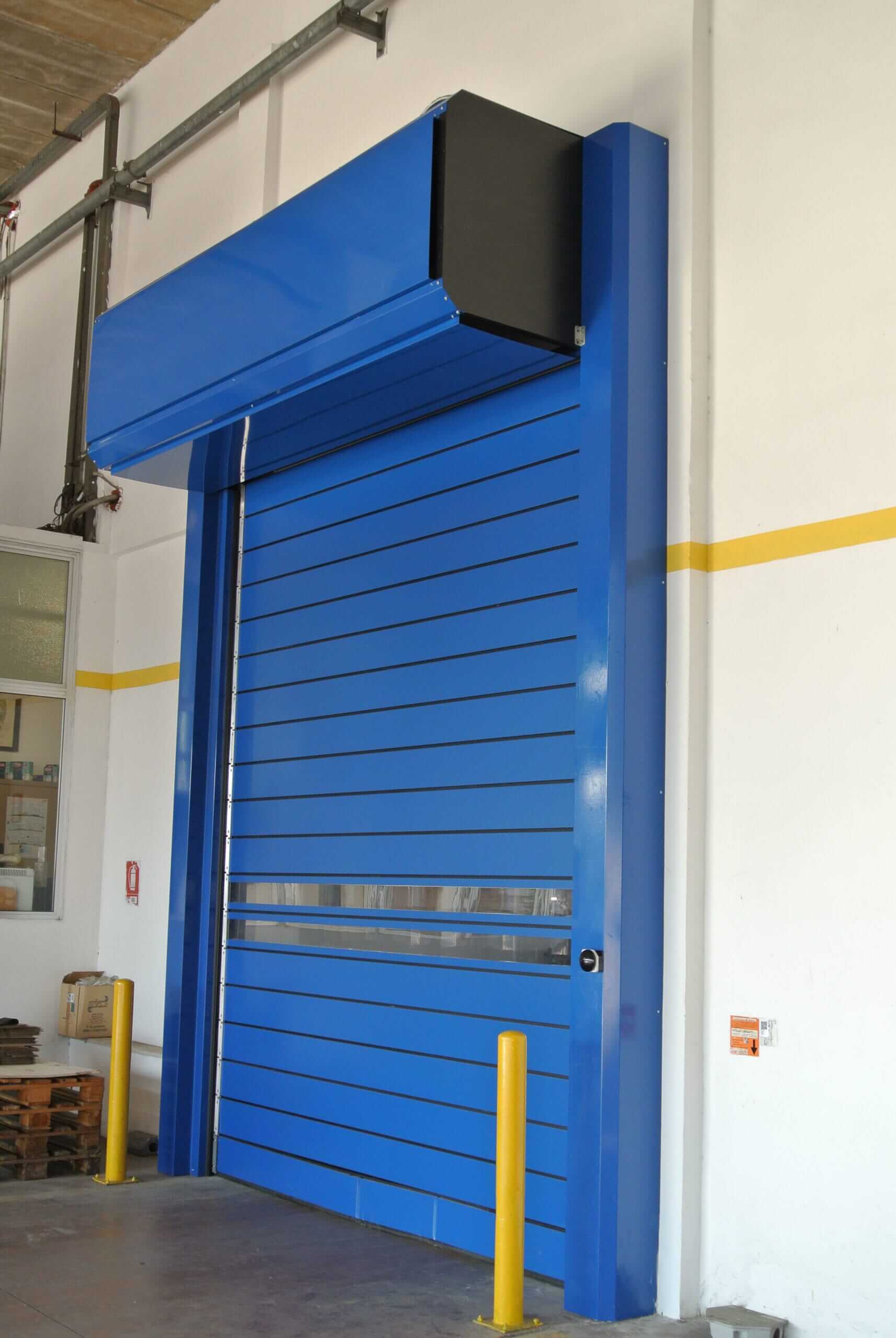

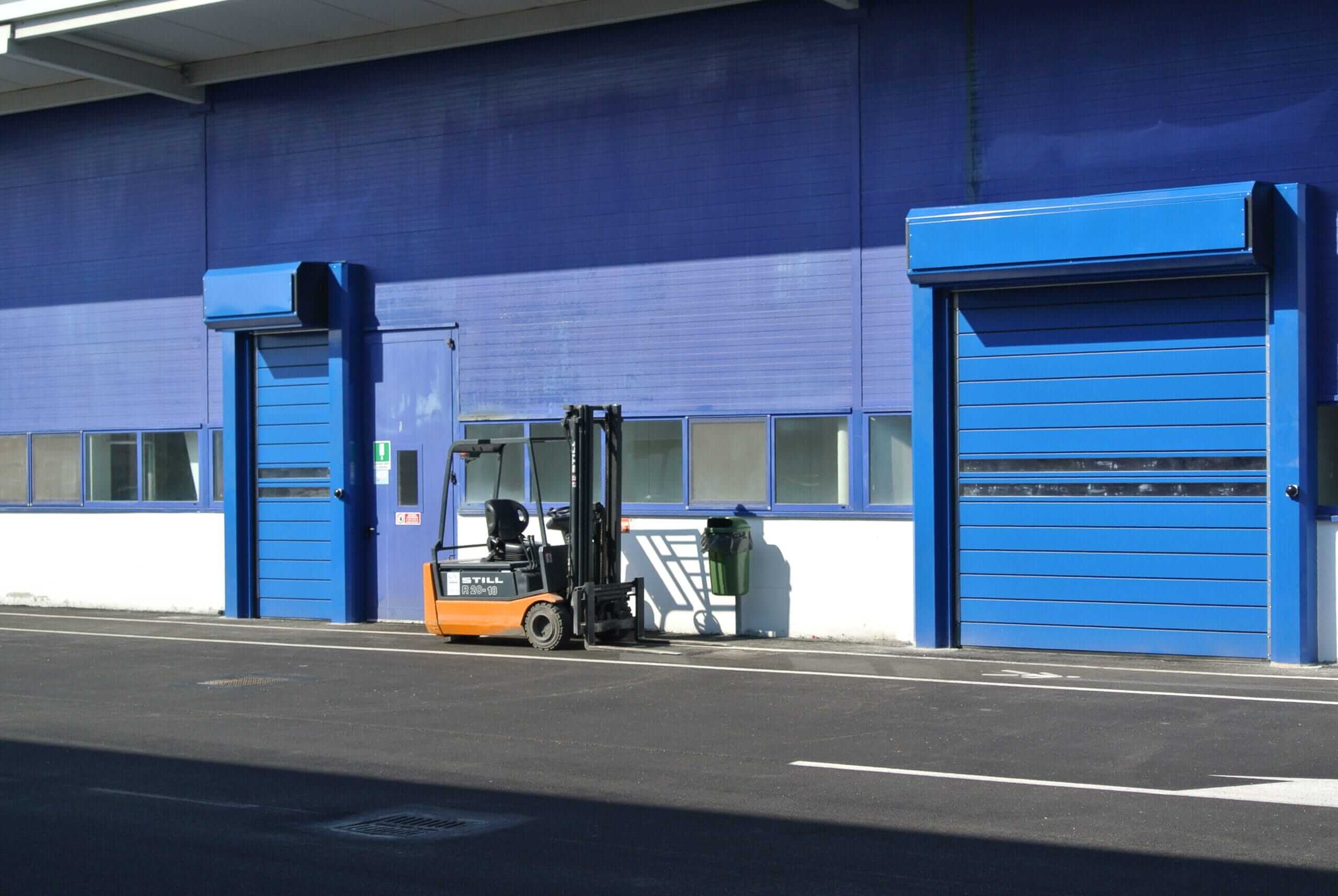

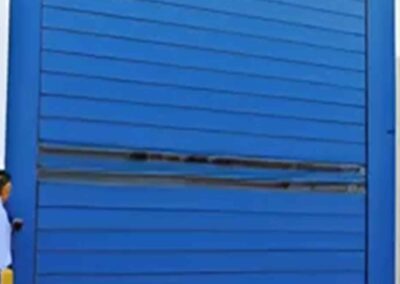

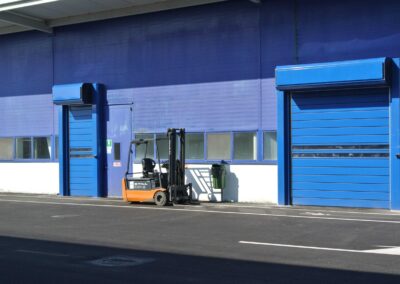

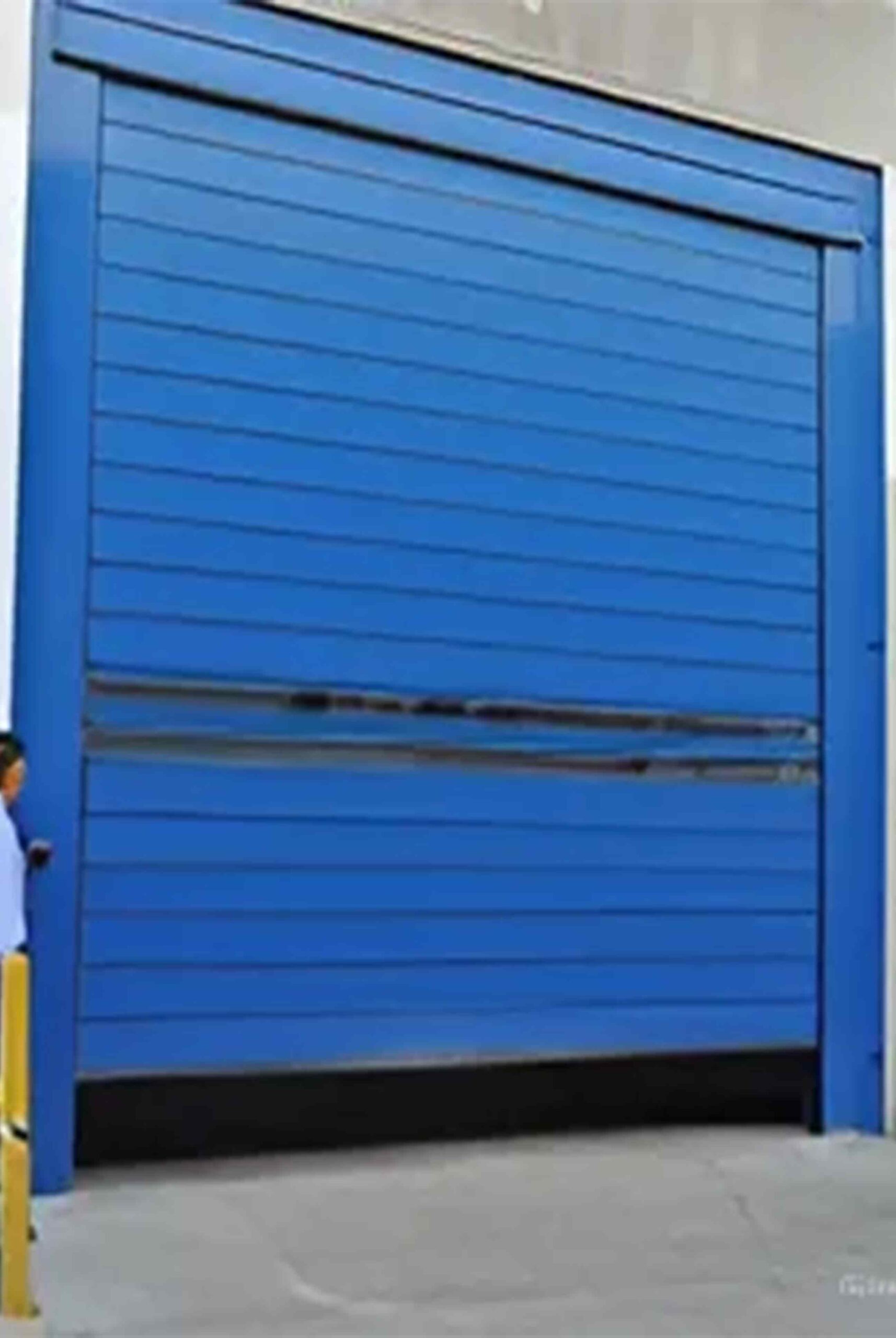

The ULTI High Speed Spiral Doors are a quality European door system offering speed, strength & reliability through its no-contact spiral header operating at speeds of up to 2 meters per second. These doors can withstand winds of over 130km/h and with its thermally insulated slats provide great acoustic reductions.
The smart Ulti-Spiral High Speed Door with its foamed sections and Micrograin finish is the epitome of modern industrial design.
Its powerful 3-phase frequency converter control (FU) enables the door to operate at speeds of up to 2 meters per second creating a very fast and secure door option for the ultimate warehouse security.
The Ulti-Spiral is also very safe having a light safety photo beams across the door line which prevents any false closures, & safety edge on door itself.
