Industrial Aircurtains
- Notice immediate improvement with AirCurtain
- Suited for industrial, warehouse, factory, and mining applications
- Motors up to 2200W – Custom units available on request
- Airflow range from 9 m/s to 28 m/s (meters/second)
- Units available for every doorway
- Huge range of sizes: 900mm, 1000mm, 1200mm, 1500mm, 1800mm
- Single-phase & 3-phase power options
- Custom designing available
- Supply, delivery, and installation options available

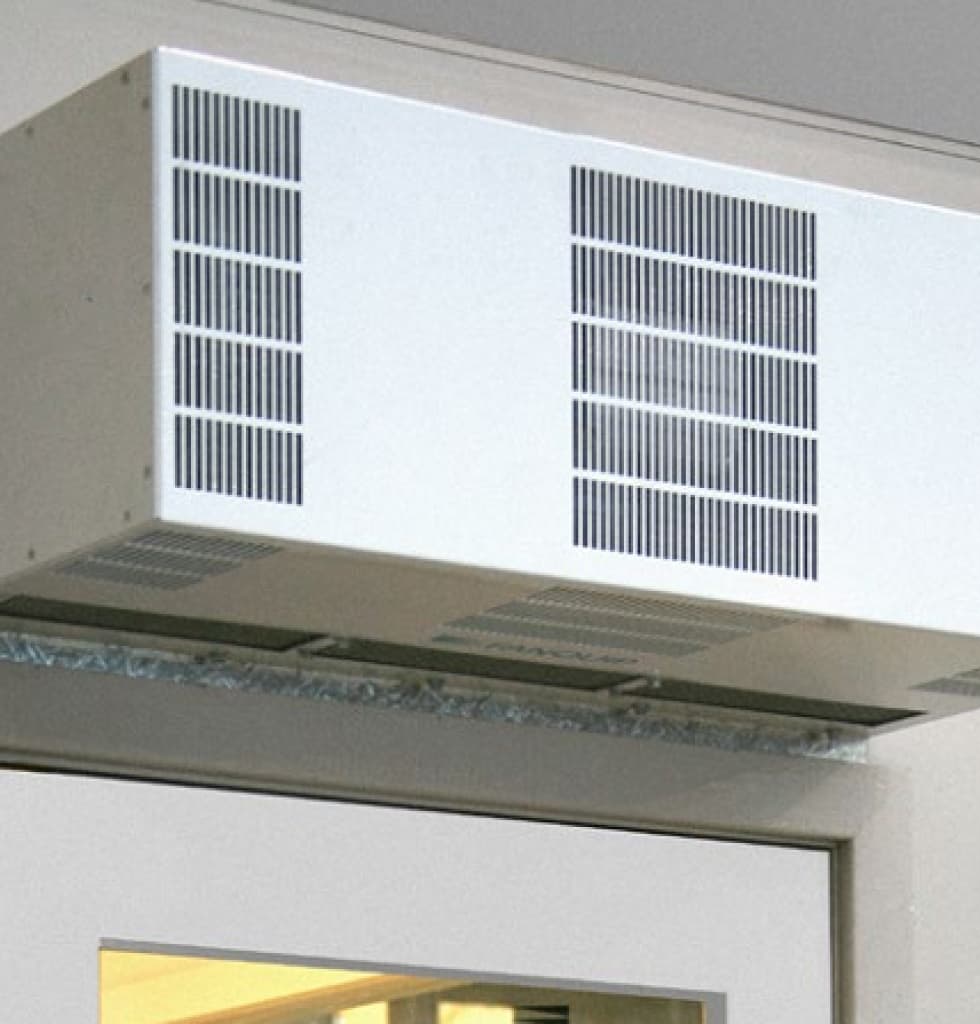

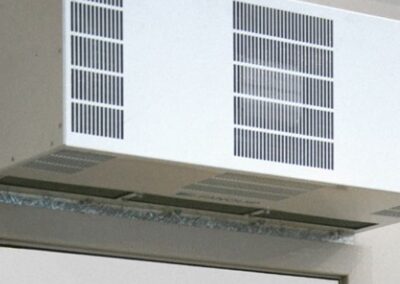

Industrial Aircurtains
Do you have a large doorway you are trying to control the ingress of insects, dirt or temperature?
Air curtain is an excellent innovation to provide an invisible barrier to control the access of insects, dust, fumes & other airborne nuisances – also helping control temperatures & keep out unwanted Hot/cold air.
The main benefit of an aircurtain, is that it provides no physical barrier – thus maintaining a free access way for clients/staff or any traffic flow!
A thin blade of air is blown down over the face of the opening at a high velocity thus creating an invisible barrier that reduces the transfer of air & restricts access of airborne nuisances.
Industrial Air Curtain Models and Specifications
ACH-10
- Unit Size: 1000mmL x 287W x 297H
- Weight: 36Kg
- Voltage: 2.7amp, 415V, 3ph
- Airspeed: 28m/s
- Airflow: 1030l/s
- Noise: 72db
ACH-15
- Unit Size: 1500mmL x 287W x 297Y
- Weight: 44Kg
- Voltage: 4.5amp, 415V, 3ph
- AirSpeed: 28m/3
- Airflow: 1545l/s
- Noise: 72db
FAC-91
- Unit Size: 900mmL
- Voltage: .75kw, 240V Single Phase,
- Airflow: 850l/s
FAC-93
- Unit Size: 900mmL
- Voltage: .75kw, 415V 3 Phase
- Airflow: 850l/s
FAC-21
- Unit Size: 1200mmL
- Voltage: 1.5kw, 240V Single Phase
- Airflow: 1600l/s
FAC-23
- Unit Size: 1200mmL
- Voltage 1.5kw, 415V 3 Phase
- Airflow 1600l/s
FAC-51
- Unit Size: 1500mmL
- Voltage: 2.2kw, 240V Single Phase
- Airflow: 2200l/s
FAC-53
- Unit Size: 1500mmL
- Voltage: 2.2kw, 415V 3 Phase
- Airflow: 2200l/s
